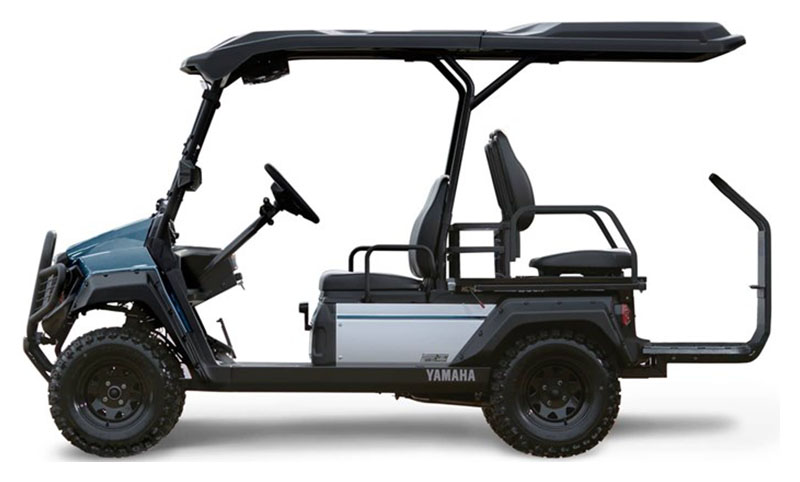

2024 Yamaha UMAX Rally 2+2 AC in Saint Maries, Idaho — 2024 Yamaha UMAX Rally 2+2 AC

View Details

Specs
Features

General Information

Manufacturer

Yamaha

Model Year

2024

Model

UMAX Rally 2+2 AC

Model Code

Color

Bluestone

Electrical

Battery

Six 8V Trojan® T-105

Charger - Delta-Q

Six 8V Trojan® T-105

Charger - Delta-Q

Engine

48V AC motor

Motor controller unit - Toyota® Industries-built

48V AC motor

Motor controller unit - Toyota® Industries-built

Horsepower

6.7 hp (5.0 kW)

Measurements

Length

Overall - 134.37 in. (341.3 cm)

Height

Overall (with suntop) - 77.20 in. (196.1 cm)

Overall (without suntop) - 57.48 in. (146 cm)

Overall (with suntop) - 77.20 in. (196.1 cm)

Overall (without suntop) - 57.48 in. (146 cm)

Width

Overall - 53.54 in. (136 cm)

Weight

Dry - 1,212 lb. (550 kg)

Wheelbase

77.28 in. (196.3 cm)

Ground Clearance

Minimum - 5.94 in. (15.1 cm)

Operational

Brakes

Self-adjusting mechanical, front and rear wheel drum

Suspension

Front - Tru-Trak II™ fully independent automotive-style strut

Rear - Unit swing arm with heavy duty coil springs over hydraulic shock absorbers

Front - Tru-Trak II™ fully independent automotive-style strut

Rear - Unit swing arm with heavy duty coil springs over hydraulic shock absorbers

Tires

Front - 23 x 10.5-12 4-ply Monitor K389

Rear - 23 x 10.5-12 4-ply Monitor K500

Front / Rear wheel tread - 41.26 in. (104.8 cm)

Front - 23 x 10.5-12 4-ply Monitor K389

Rear - 23 x 10.5-12 4-ply Monitor K500

Front / Rear wheel tread - 41.26 in. (104.8 cm)

Seating

Capacity - 4 persons

Color - Black

Suntop color - Black

Capacity - 4 persons

Color - Black

Suntop color - Black

Towing Capacity

1,200 lb.

Steering

Self-compensating double reduction helical rack-and-pinion

Speed

Maximum forward - 15 mph (24.1 km/h)

Maximum reverse - 10 mph (6.2 km/h)

Maximum forward - 15 mph (24.1 km/h)

Maximum reverse - 10 mph (6.2 km/h)

Other

Additional Colors

Bluestone

Carbon

Coral Red

Cyan

Glacier

Onyx

Titan

Bluestone

Carbon

Coral Red

Cyan

Glacier

Onyx

Titan

Frame

HybriCore™ chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester / urethane powder topcoat

Body - Custom-formulated thermoplastic olefin painted with a two-part top coat of high-luster automotive-grade polyurethane

Warranty

Standard 2-year limited vehicle

The Better Ride

IMPACT-RESISTANT FRONT WINDSHIELD: Work in confidence with a sturdy, durable polycarbonate windshield.
AUTOMOTIVE STYLE DASH: Completely redesigned for the modern professional.
UNDER HOOD STORAGE COMPARTMENT: House all of your necessities in a sizable storage area, designed for convenience and effortless accessibility.
LUXURY BUCKET SEATS: Derived from our award winning Viking® Side-by-Side, you can enjoy a comfortable ride with support that will last your entire work day.
EASY ACCESS ENGINE COMPARTMENT: Comfortably reach the engine compartment without having to remove the dump bed.
DUAL USB PORTS: Allow players to conveniently charge devices on both sides of the vehicle, a win-win for drivers and passengers.

The Better Ride

IMPACT-RESISTANT FRONT WINDSHIELD: Work in confidence with a sturdy, durable polycarbonate windshield.
AUTOMOTIVE STYLE DASH: Completely redesigned for the modern professional.
UNDER HOOD STORAGE COMPARTMENT: House all of your necessities in a sizable storage area, designed for convenience and effortless accessibility.
LUXURY BUCKET SEATS: Derived from our award winning Viking® Side-by-Side, you can enjoy a comfortable ride with support that will last your entire work day.
EASY ACCESS ENGINE COMPARTMENT: Comfortably reach the engine compartment without having to remove the dump bed.
DUAL USB PORTS: Allow players to conveniently charge devices on both sides of the vehicle, a win-win for drivers and passengers.
